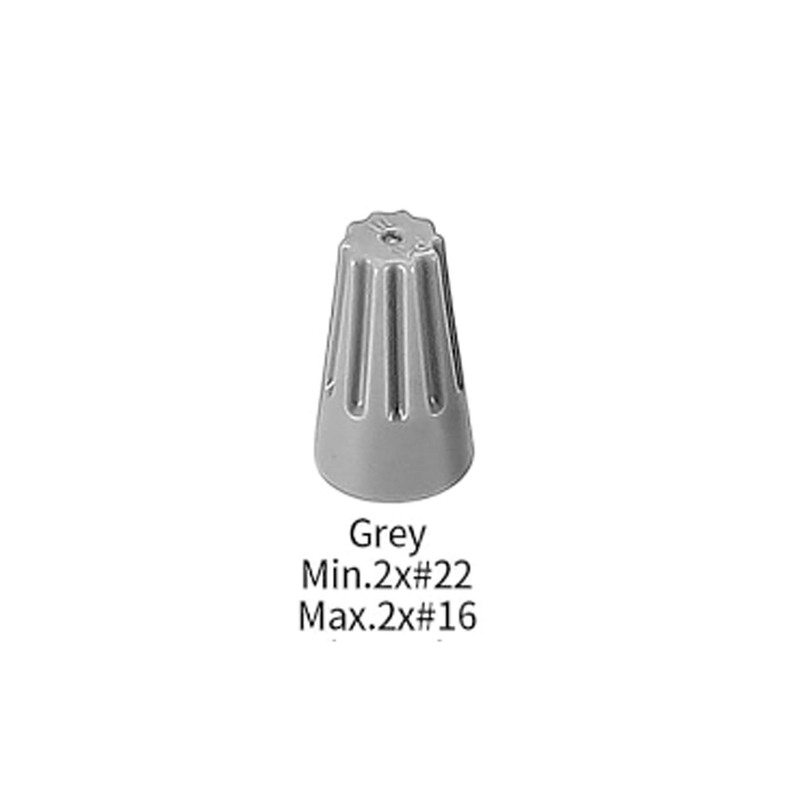

P1 Insulating Insert Twist Electrical Wire Connectors with Spring, Portable Wire Caps for Quick Connection
These electrical wire connectors are made of plastic shell. The nylon shaped shell has thick wall, high hardness and is not easy to aging. It can effectively prevent the unstable connection of leakage box and enhance the safety and insulation.
Rs.3.00 Rs.6.00
Product Details
Installation Instructions: Turn off power before installing or removing connectors. Strip wires 5/16" (7.9 mm). For #16 and smaller stranded wires, strip 3/8" (9.5 mm). Pre-twisting unnecessary, hold stripped wires together with ends even. Lead stranded wires slightly. Align any frayed strands or conductors. Push wires into connector and screw on until two twists are visible in wires.
FOR USE WITH COPPER TO COPPER Temperature Rating: 105°C (221°F) Max. Voltage Rating: 600V Max. building wiring; 1000V Max. in fixtures and signs
