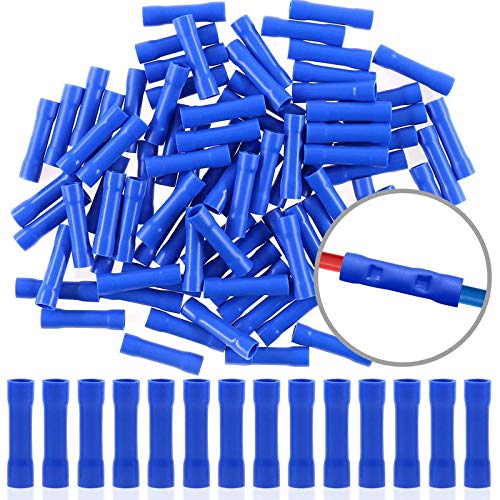

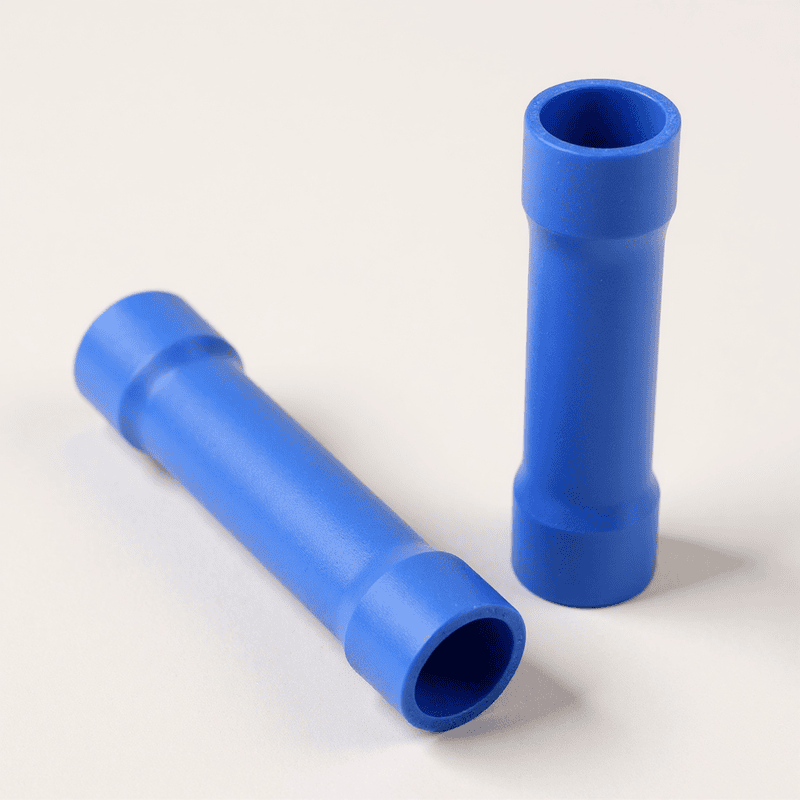

BV-2 Insulated Straight Butt Connector Electrical Wire Crimp Terminals (Pack of 10) BLUE for (1.5-2.5 sqmm)

Fully Insulated Straight Butt Connector Electrical Wire Crimp Terminals (Pack of 10) BLUE

BV-2 Insulated Straight Butt Connector Electrical Wire Crimp Terminals (Pack of 10) BLUE for (1.5-2.5 sqmm)

HIGH-QUALITY MATERIAL: Wire butt connectors are made of top brass ( tin-plated finished ), PVC insulation
FLARED INSULATION: Flared barrel design of insulated butt crimp connectors is easy to insert
For Wire Thickness: 0.75 mm to 2.5 mm / 16-14 AWG Cable
PRACTICAL CRIMP CONNECTORS: With the electronic butt connectors, one or more different conductors can be crimped in a short space
colour : BLUE

Rs.40.00 Rs.60.00

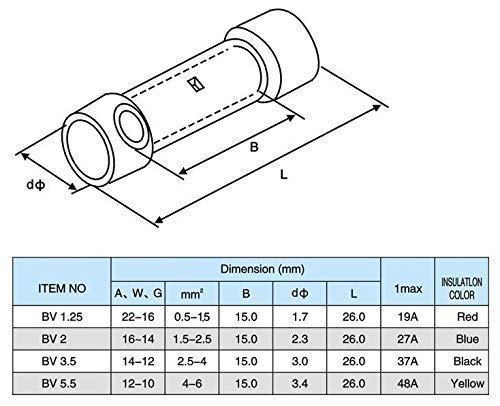

Product Details

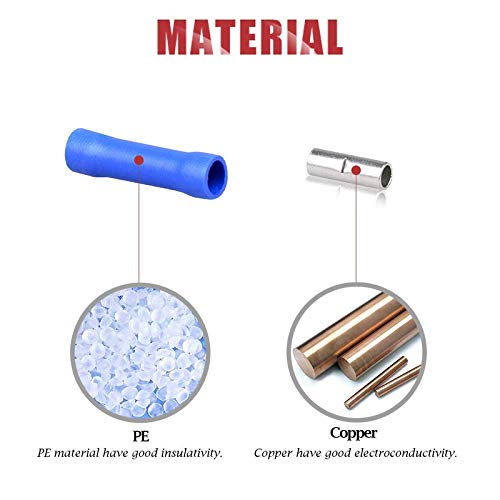

Conductor: Brass

Insulation: PVC

Finished: Tin-Plated

Operating temperature : -10℃ ~ 75℃ (14℉ ~ 167℉)
For Wire Thickness: 0.75 mm to 2.5 mm / 16-14 AWG Cable

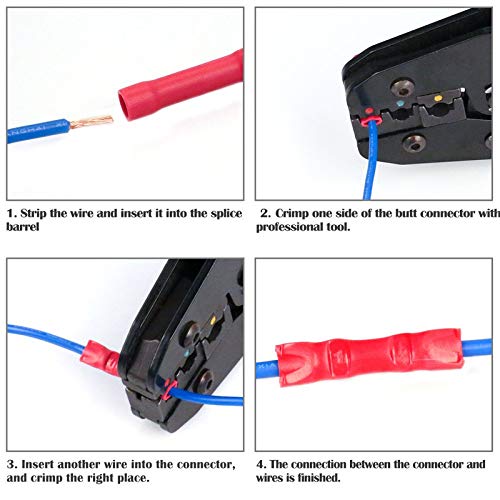

★ How to use the bullet wire disconnectors

◆ Step1: Strip & Insert

Strip the wire and insert it into the connector.

◆ Step 2: Crimp

Crimp one side of the butt connector with the professional tool.

◆ Step 3: Strip & Insert

Insert another stripped wire into the connector, and crimp the other side of the connector.

Finished!
