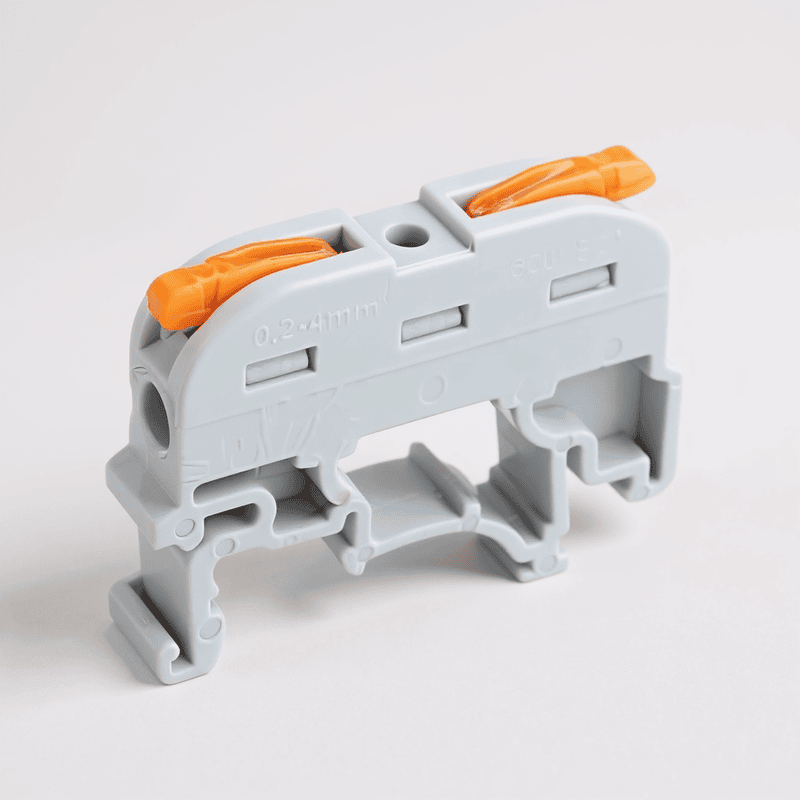

Quick Connection Terminal 1 In-1 Out - PCT-211 -DIN Rail mount Type (pack of 1)
This is a PCT-211 Guide Rail Type, Quick Connection Terminal 1 In-1 Out with Spring Lock Lever for Cable Connection 0.08-4mm2.
This PCT Guide Rail Type Terminal Block Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 2.5mm2 area. This 1 In-1 Out Connector can tolerate the rated voltage up to 400V with an electric current peak of 32A.
Rs.35.00 Rs.70.00
Share :
Product Details
Item Type: PCT
Model PCT-211
Operating Voltage: 220V/6KW/32A
Rated Current (A) 32
Rated Voltage (V): 400
Allowed Wire Size (mm2): hard wire 0.08-4mm2 or less, soft wire 0.08-2.5mm2 or less
Allowed Wire Size (AWG): 10 ~ 8
Color: Grey, Orange
Operating Temperature (°C) -20 to 85
Size: 47.4mmx8mmx31mm
Package Includes:
1 x PCT-211 Quick Connection Terminal
