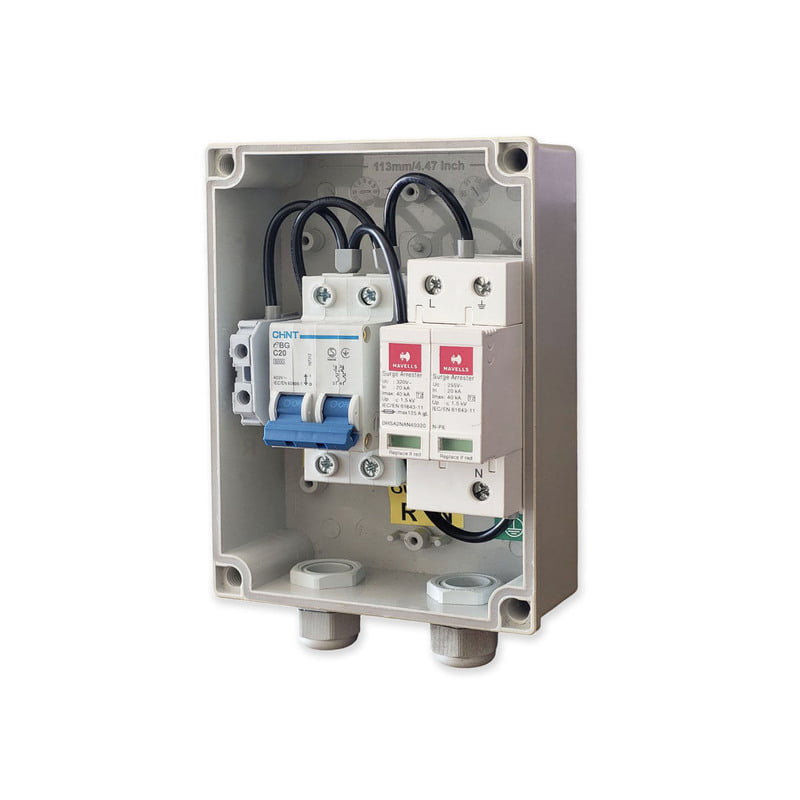

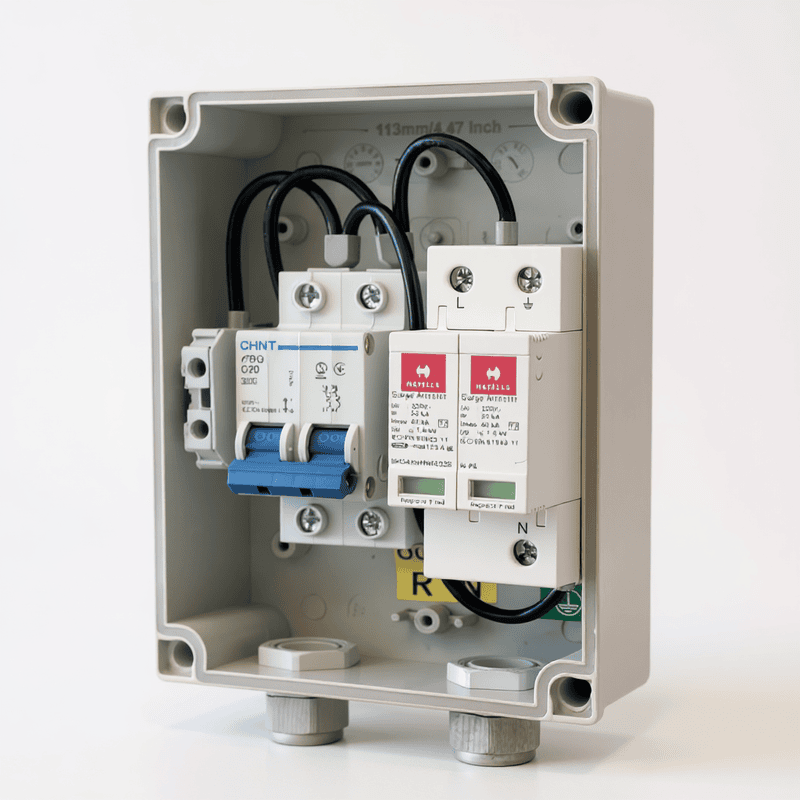

Daystar Solutions ACDB Single Phase Distribution Box – 320V, 32A
- Product: Daystar Solutions ACDB Single Phase Distribution Box
- Voltage: 320V
- Current Rating: 32A
- Purpose: Provides additional electric protection for SPV systems during failures
- Protection: Safeguards the AC load side during electrical failures
- Components: Incorporates MCB and MCCB for enhanced protection
- Surge Protection: Includes provision for surge protection to safeguard electronic equipment
- Application: Ideal for ensuring maximum protection of sensitive electrical systems
Product Details
Max. Operating Voltage (Uc): 320V AC
SPD: Havells
SPD Classification / Type: Type 2, Class II
Enclosure Material: Thermoplastic UL94-V0
Enclosure Type: Transparent Cover, Light Gray Box
MCB Rating: 32A
Rated Frequency (f): 50 Hz
Short Circuit Breaking Capacity: 10 kA
Case & Cover: Moulded, flame-retardant thermoplastic material
Protection Class: IP 20
Type: C Curve
Inside Mounting: 35mm x 7.5mm Din Rail
Protection: IP67 Water Proof, Dust Proof & Anti-Corrosion
