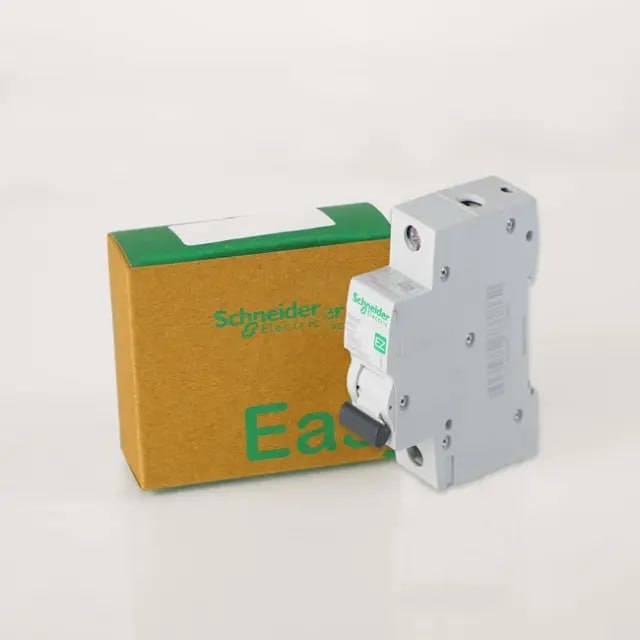

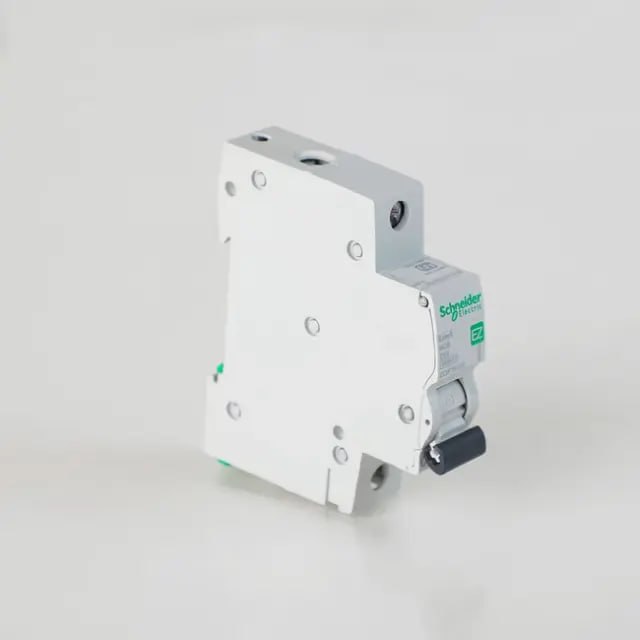

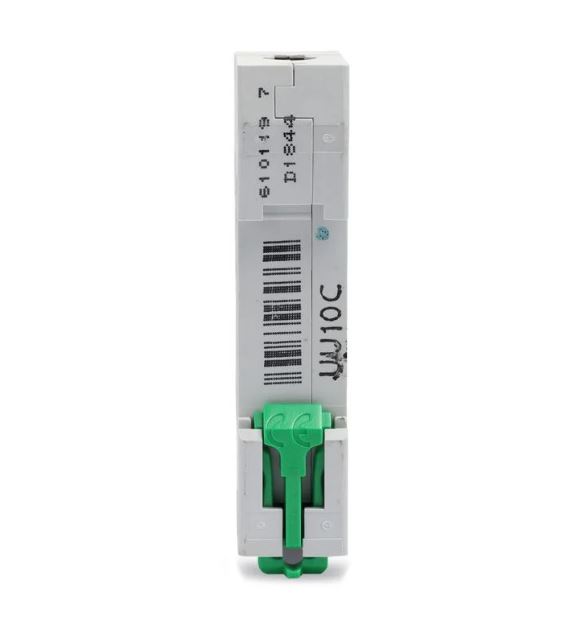

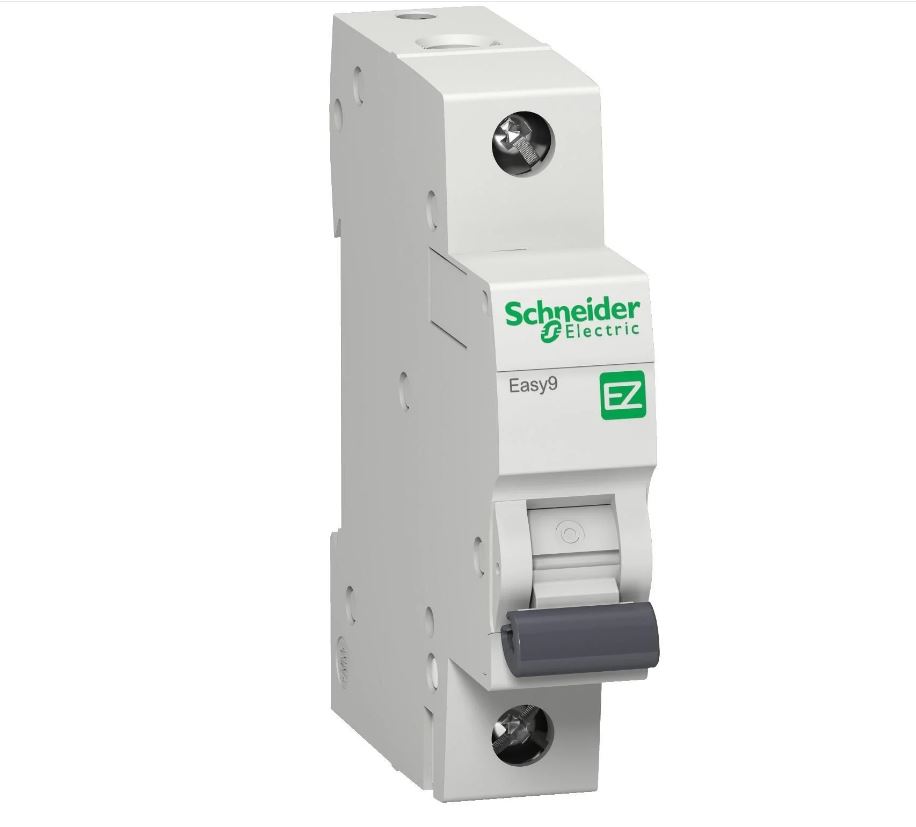

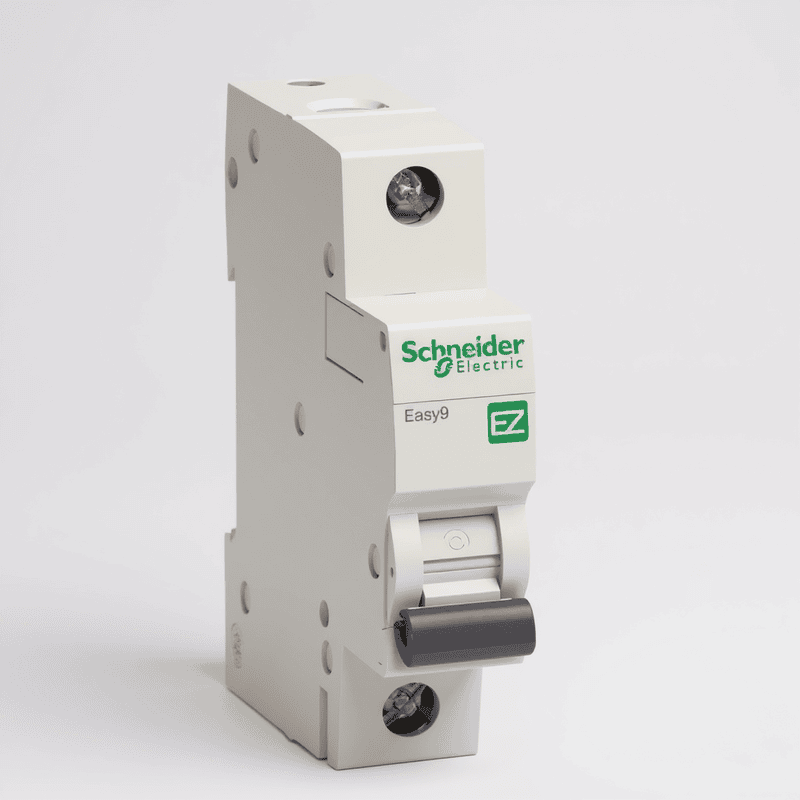

B curve Schneider AC MCB 1P 10A B curve 240V (Pack of 1)
B curve MCB (Miniature Circuit Breaker) is typically used for domestic and light commercial applications where the inrush currents are not too high. It provides protection against overloads and short circuits and is commonly found in circuits with lighting, small motors, and similar loads. The B curve MCB trips when the current exceeds 3 to 5 times its rated current.
This is a 1P, 10A MCB with a breaking capacity of 10kA.
Country of Origin: India
Range | Easy9 |
|---|---|
Device application | Distribution |
Product or component type | Miniature circuit-breaker |
Device short name | Easy9 MCB |
Poles | 1P |
Number of protected poles | 1 |
[In] rated current | 10 A |
Network type | AC |
Trip unit technology | Thermal-magnetic |
Curve code | B |
Breaking capacity | 10000 A Icn at 240 V AC 50/60 Hz conforming to IEC 60898-1 |
Suitability for isolation | Yes conforming to IEC 60898-1 |
