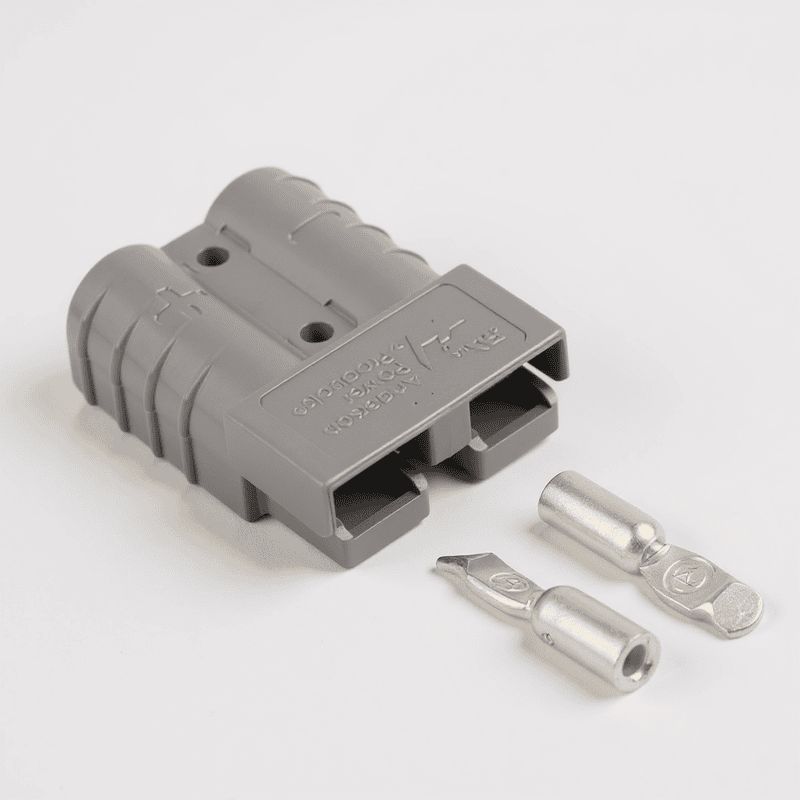

SB50 600V 50A Anderson Power Connector – Grey (Female connector only) 1 pcs

SB50 600V 50A Anderson Power Connector – Grey

SB50 Anderson Power Connector – 600V 50A Grey Anderson plugs are a dedicated electrical part used by campers on their vehicles, trailers, and caravans as part of a 12-volt, high-current, dual battery system. Their main benefit is that they allow auxiliary batteries to be charged while driving. This product is known as SB50 Anderson Power Connector, SB50 Power Connector, SB50 Connector, SB50 Battery Connector, SB50 Heavy duty connector, and Anderson Power Products 940 Connector.

Note: Connectors are compatible with the same color connectors only. For example Grey-Grey.  Grey will not fit with Red.

Note: These Anderson plugs are cleverly designed that they can plug into each other while keeping the correct battery polarity. An Anderson plug can only connect to another Anderson plug if you flip one of them over otherwise they will not push into each other, this clever design prevents short circuits and makes for a universal plug-and-play system.

Features:

• The Plug is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.

• Provide simplified assembly and minimize the number of components.

• Silver-plated copper contacts inside housings strongly force the contacts together.

• Contacts feature a sacrificial tip that allows high current circuit interrupt.

• Prevents accidental cross-mating of circuits.

• For signal transmission or the added safety of a premade ground position.

• Durable in use.

• Easy to use.

Features/Specs:

• Manufacturer: Anderson Power Products

• Series: SB50

• Manufacturer Part No:992

• Current Rating: 50 A

• Voltage Rating: 600 V

• Operating Temperature Range: -20°C to 105°C

• Product Type: Heavy-Duty Power Connectors

• Housing Material: Polycarbonate (PC)

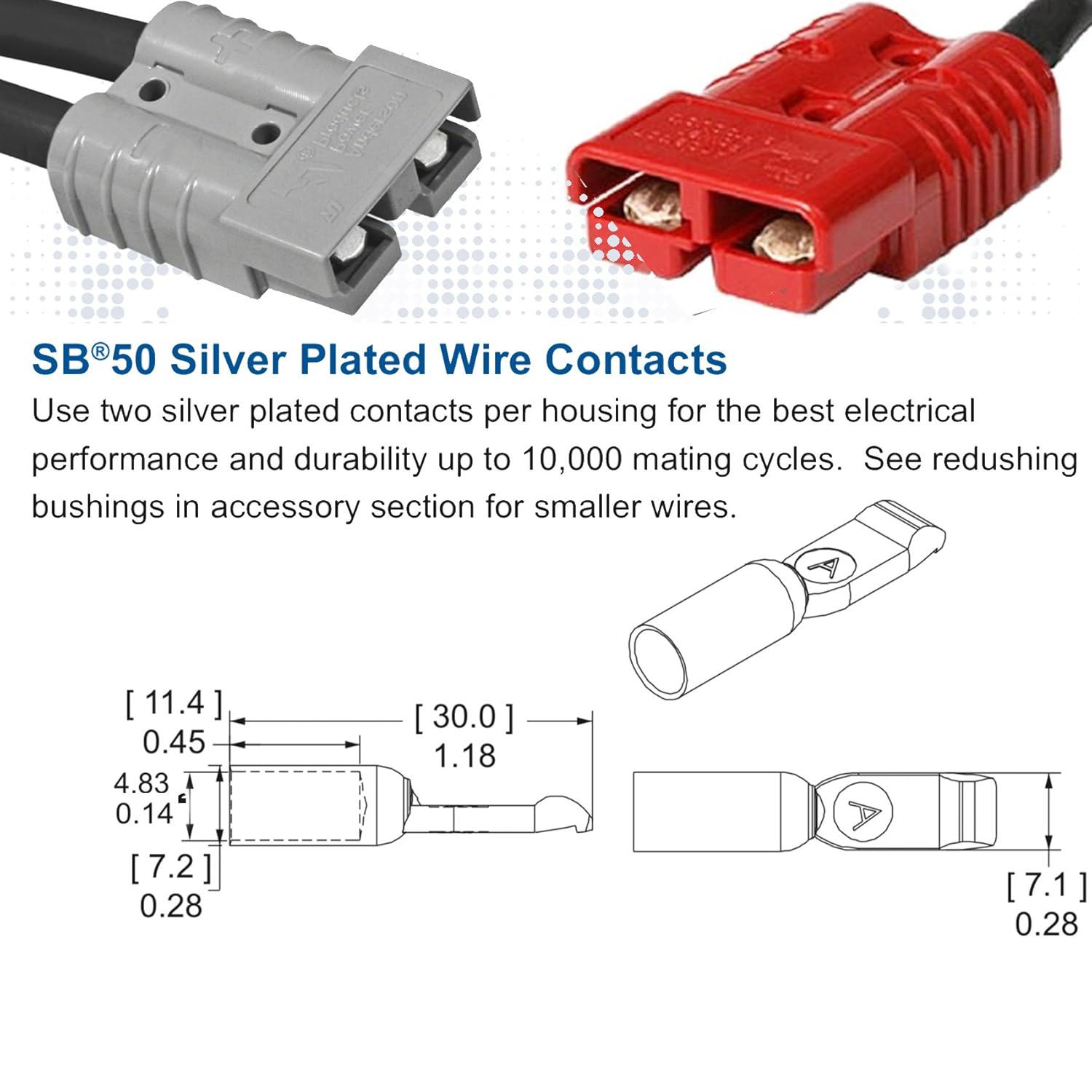

• Contact material: Pure copper silver plating

• Product: Housings

• Wire Gauge: 16 AWG ~ 6 AWG

• Cable size: (up to 13.3 sq mm)

• Vibration resistance: Excellent

• Color: Grey

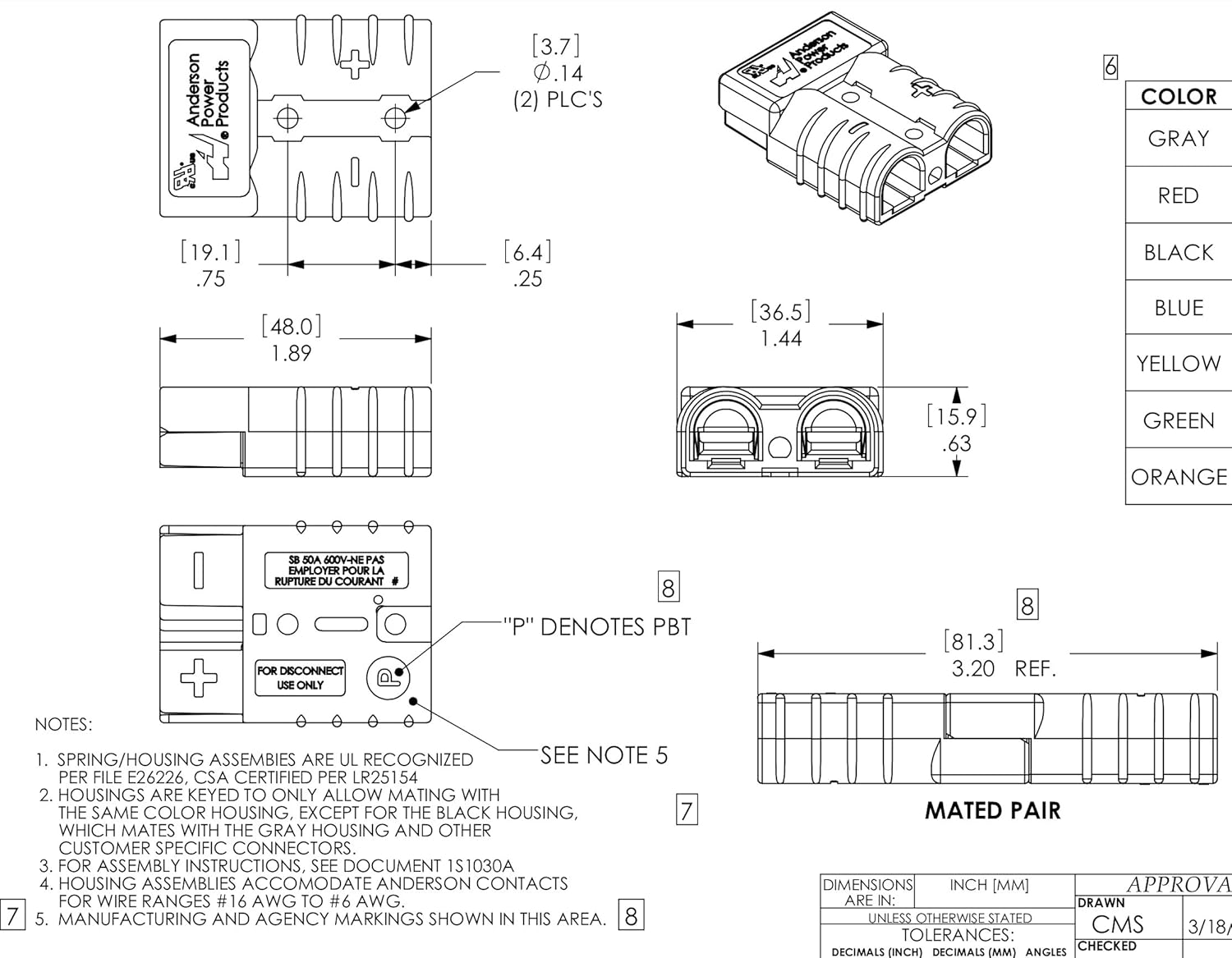

• Length: 48 mm

• Width: 35.5 mm

• Height: 16 mm

• Unit Weight: 25 gm

Applications:

•  Battery Chargers

• Solar Panels

• Wind Generators,

• Tow Trucks, Snow Plows, Farm Equipment, Jumper Booster Cables, Welding Equipment, Winches, Electric Vehicles etc.
