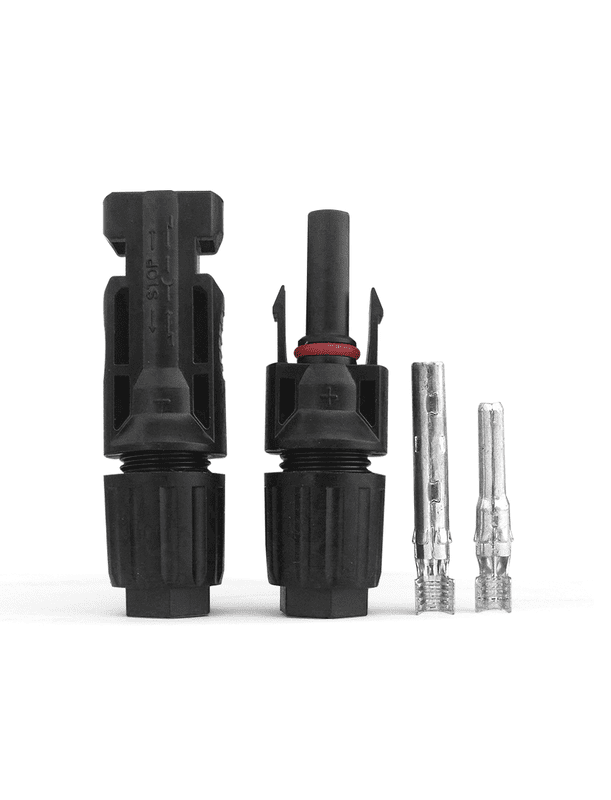

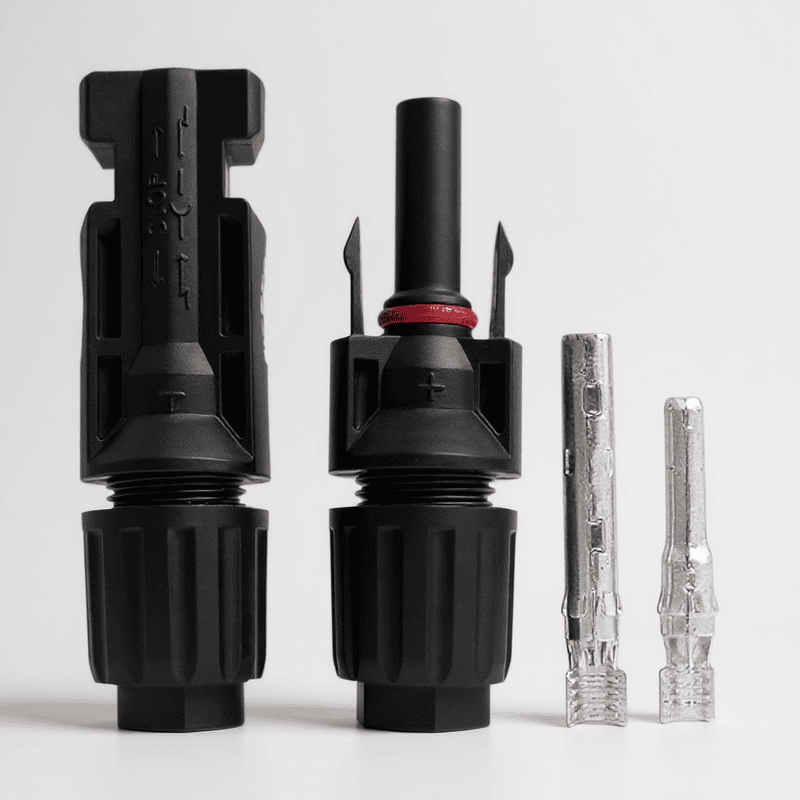

MC4 Connector Male & Female (1 Pair)
Rs.24.00 Rs.100.00
- Type: MC4 Connectors (Male & Female Pair)
- Application: Designed for connecting solar panels
- Compatibility: Suitable for crimping onto 2.5sq mm / 4 sq mm and 6 sq mm cables
- Connector Type: Single-contact electric connectors
- Manufacturer: Multi-contact (MC) with a 2.5 to 6 sq mm contact assembly pin
- Easy Installation: Connectors can be pushed together by hand for quick setup
- Secure Disconnect: Requires a tool to disconnect, preventing accidental disconnection
- Durability: Rated for 25 years of life
- Weather Resistance: Designed to withstand outdoor conditions
- Performance: Ensures reliable electrical connections for solar energy systems
- Versatile Use: Ideal for solar panel installations and extensions of solar arrays
Product Details
Rated Current：30A
Rated Voltage：1000V (TUV) 600V (UL)
Test Voltage: 8KV (TUV50HZ, 1min)
Contact Resistance :< 0.5mΩDegree of ProtectionIP67
Working Temperature:-40°C to 85°C
