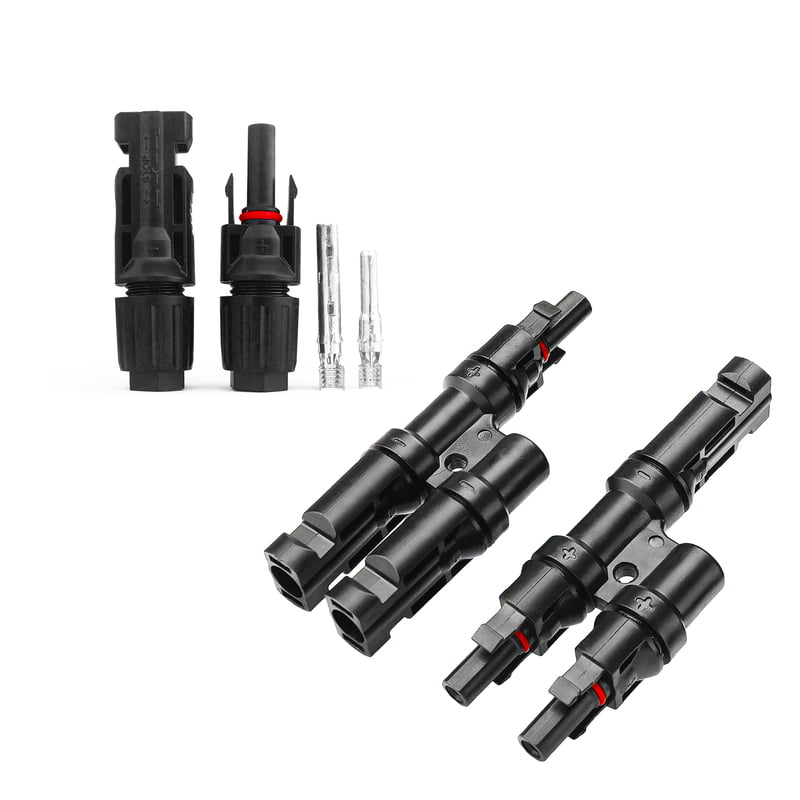

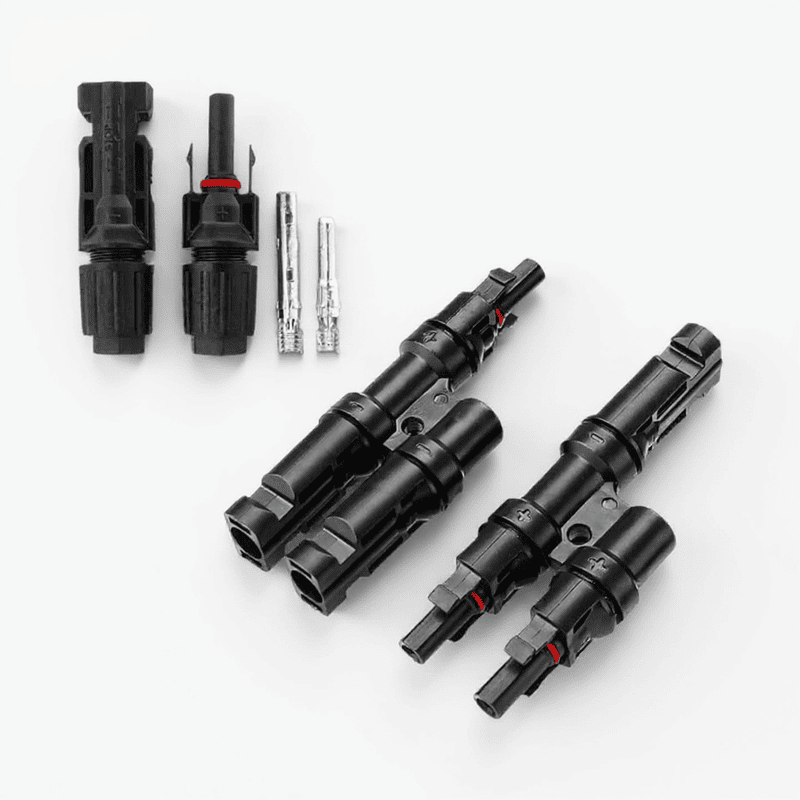

MC4 Branch 2 in 1 T2 connector with Solar MC4 connector (1+1 Pair)
Type: MC4 Branch 2 in 1 T2 Connector and Solar MC4 Connector (Male & Female Pair)Application: Connects solar panels in parallel for efficient energy transfer.Current Rating: Rated for 50A; tested for reliable operation up to 30A.Material: High-quality copper with tin plating for excellent conductivity.Connection Type: Two-terminal design for flexible configurations, suitable for series and parallel connections.Durability: Weather-resistant and built to withstand harsh outdoor conditions.Installation: Easy push-fit assembly; requires a tool for secure disconnection.Lifespan: Rated for 25 years of reliable use, ideal for solar energy systems. Available Offer
Product Details
Rated Current: 30A
Rated Voltage: 1000V (TUV) / 600V (UL)
Test Voltage: 8KV (TUV, 50Hz, 1 min)
Contact Resistance: < 0.5 mΩ
Protection Rating: IP67 (water and dust resistant)
Operating Temperature: -40°C to 85°C
Model Number: 2T 1 Pair
Country of Origin: India
Lifespan: 25 years
Material: Copper, Tin Plated for corrosion resistance
UV & Flame Resistant: Designed for outdoor use with added safety features
Insulation: High-grade for optimal safety and durability
