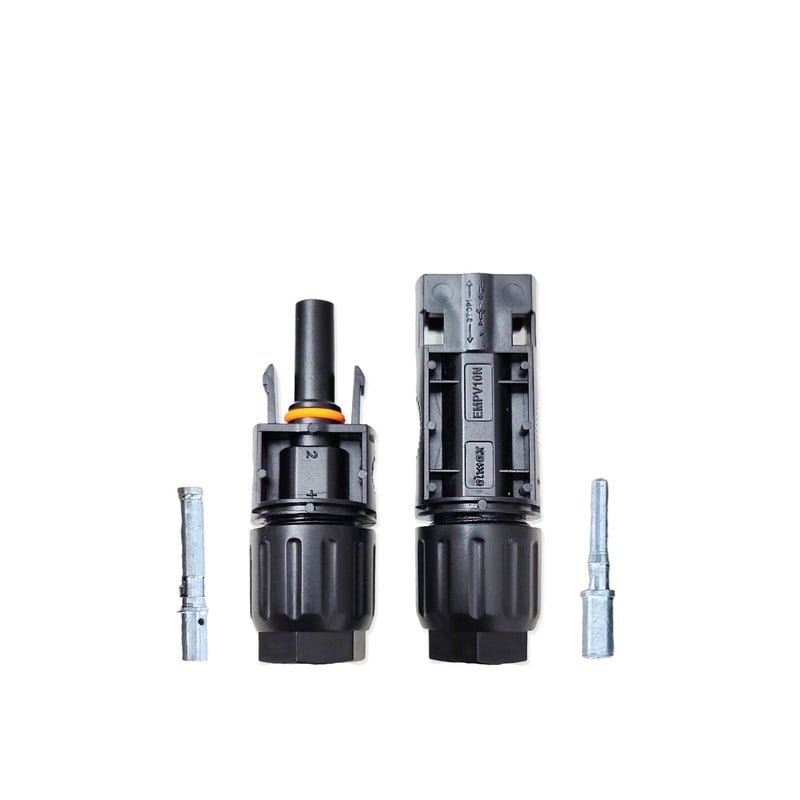

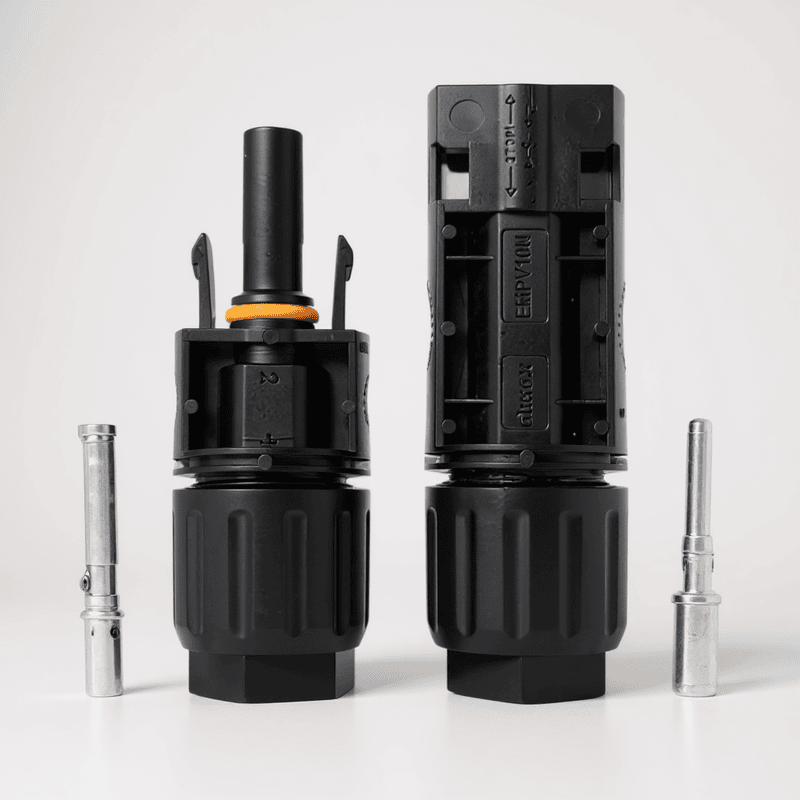

MC-10 Solar Connector Pair
Rs.161.00 Rs.356.00
High Capacity 80A, Solar MC4 connectors suitable for 10 sq mm cable- male & Female pair These connectors are suitable for crimping on to 10 sq mm cables.
The usual MC4 is suitable for 4 sq mm.
When multiple panel output solar energy is combined, current capacity needs to be high which will generate too much heat for 4 sq mm. Sometimes This will melt the MC4 causing damage.
10 sq mm wires and connectors will be suitable for current above 30A from the panels. These MC4 connectors are ideal for connecting to 10 sq mm solar wires.
They have a higher current carrying capacity up to 80 Amp.
When multiple panel output solar energy is combined, current capacity needs to be high which will generate too much heat for 4 sq mm. Sometimes This will melt the MC4 causing damage.
10 sq mm wires and connectors will be suitable for current above 30A from the panels. These MC4 connectors are ideal for connecting to 10 sq mm solar wires.
They have a higher current carrying capacity up to 80 Amp.
Product Details
RATED VOLTAGE: 1000V VDC/VAC
RATED CURRENT: 80A
SUITABLE CABLE CROSS SECTION: 10 SQMM (8AWG)
PIN DIMENSION: 4 MM (allows it to connect to all other MC4 or branch connectors)
PROOF VOLTAGE: 6000 AC/ 2200V DC
CONTACT MATERIAL: COPPER, TIN PLATED
CONTACT RESISTANCE: <5 mOHM
DEGREE OF PROTECTION IP: IP68 (IEC 60529)
TEMPERATURE RANGE: -40C TO +85C
FLAME CLASS: UL94V-0
RATED CURRENT: 80A
SUITABLE CABLE CROSS SECTION: 10 SQMM (8AWG)
PIN DIMENSION: 4 MM (allows it to connect to all other MC4 or branch connectors)
PROOF VOLTAGE: 6000 AC/ 2200V DC
CONTACT MATERIAL: COPPER, TIN PLATED
CONTACT RESISTANCE: <5 mOHM
DEGREE OF PROTECTION IP: IP68 (IEC 60529)
TEMPERATURE RANGE: -40C TO +85C
FLAME CLASS: UL94V-0
