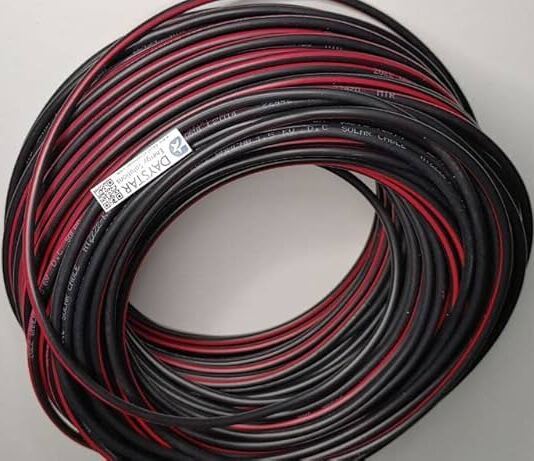

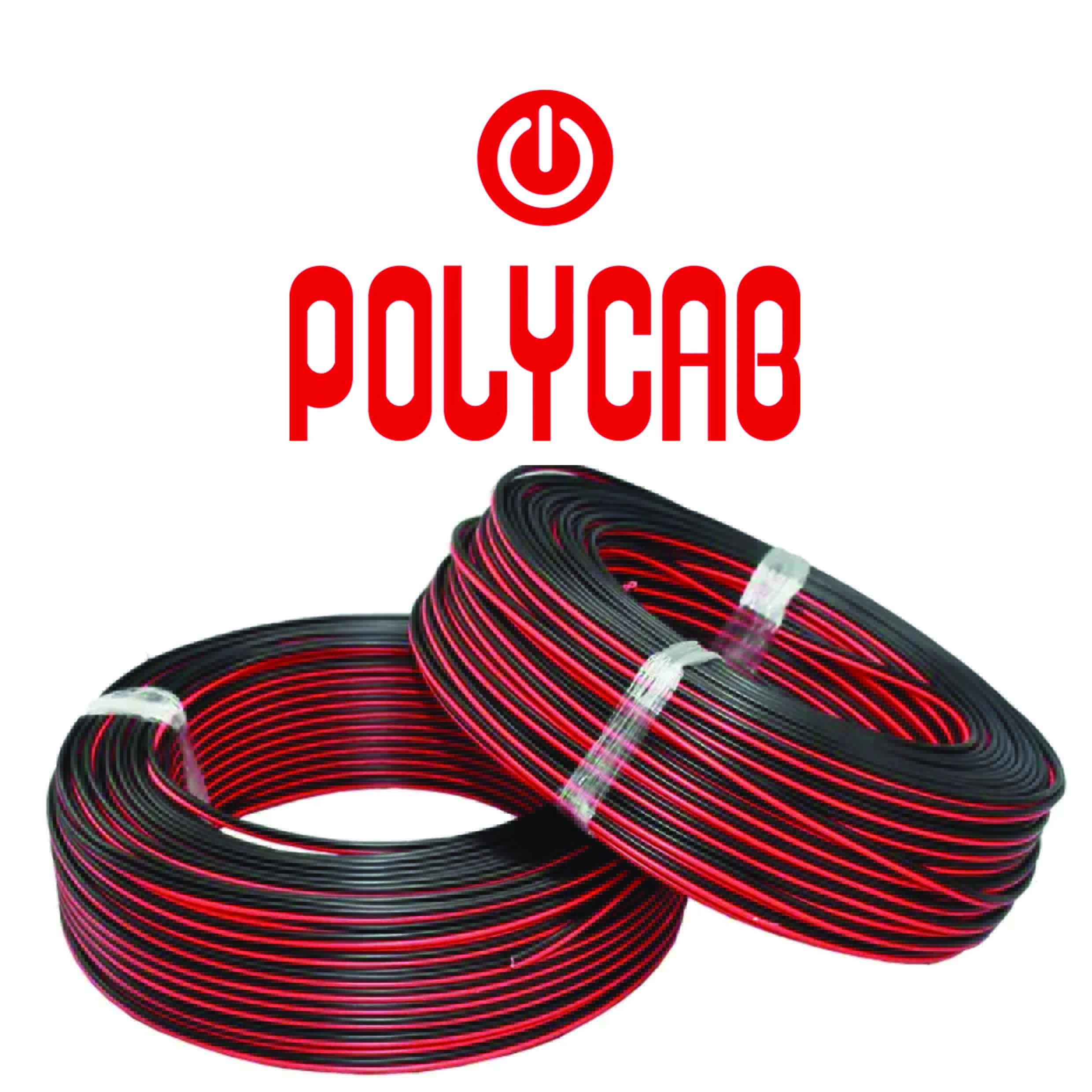

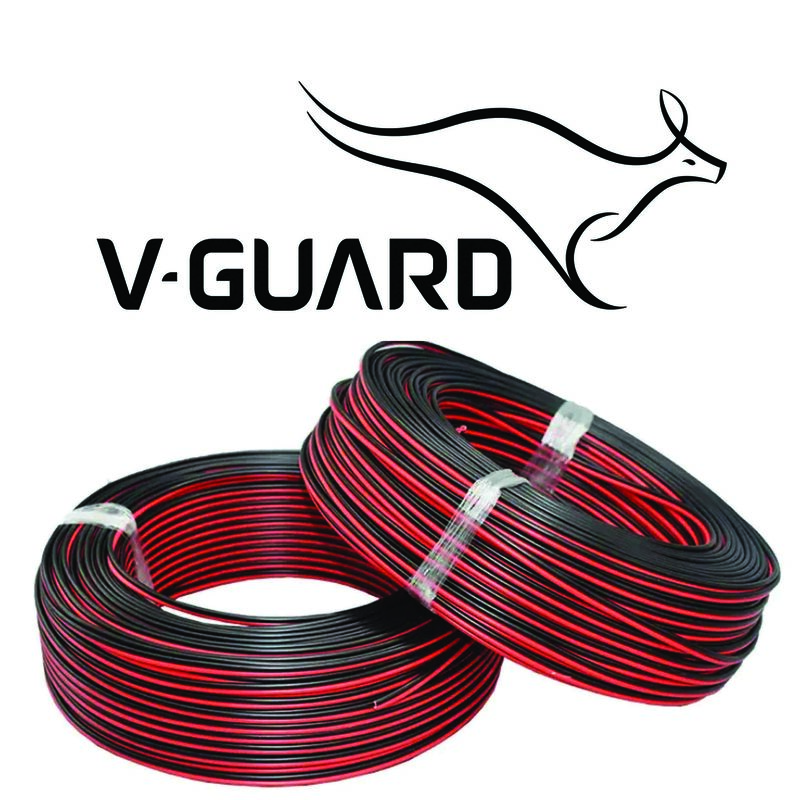

4 sq.mm DC Cable (Black with Red Stripe)
Rs.480.00 - Rs.4,608.00
- Cable Type: 4 sq.mm DC Cable (Black with Red Stripe)
- Core: Single core copper cable for positive (+ve) and negative (-ve) connections
- Insulation: HR 105°C PVC compound for insulation
- Sheathing: UV stabilized HR 105°C PVC compound for added protection
- Material: High-quality copper for reliable conductivity
- UV Protection: UV resistant for long-term outdoor use
- Temperature Rating: Rated for up to 105°C for high heat tolerance
- Application: Ideal for DC solar installations and other outdoor electrical systems
- Durability: Designed to withstand harsh weather conditions
Product Details
Tier 1 Solar Cables with Class 5 Flexibility
Conductor Size: 4 Sq.mm
Available length: 10, 20, 30, 50, 100m
Rated AC Voltage: 0.6/1 kV
Rated DC Voltage: 1.8 kV
Material: Annealed Tinned Flexible copper conductor
Outer sheath colour: Black with Red Stripe outer sheathing for +ve DC & Black outer sheathing for –ve DC
Nominal Overall Diameter: 5.1mm ± 0.5 mm
Current rating in Air: 55A
Lower ambient temperature: 40°C
Upper ambient temperature: 90°C
PV1-F Solar Cable
