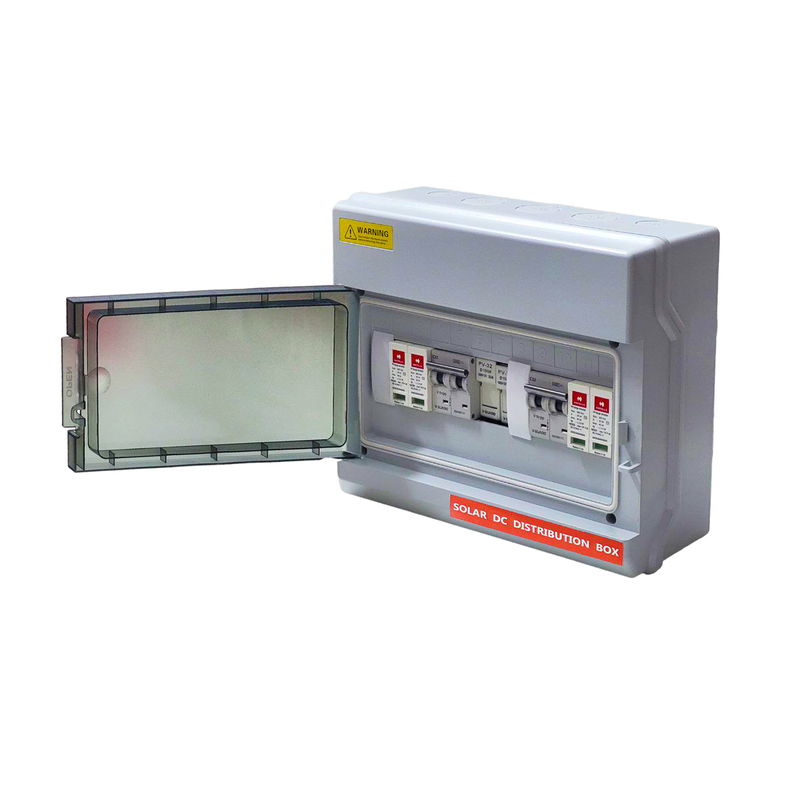

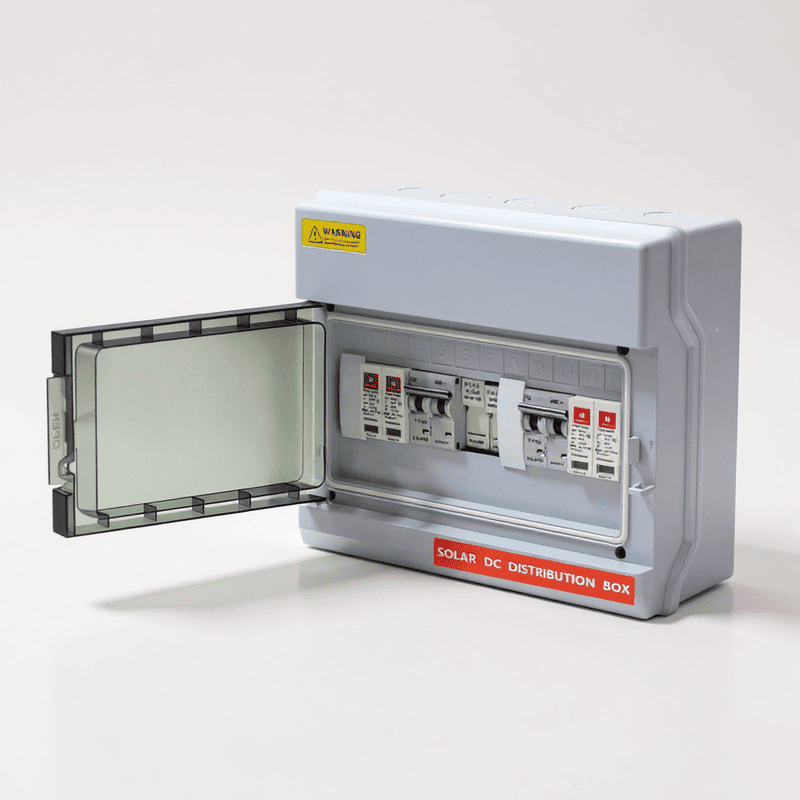

Daystar Solutions DCDB 4-8 kW, 2-In-2-Out, 600V DC Distribution Box
- Product: Daystar Solutions DCDB 4-8 kW, 2-In-2-Out, 600V DC Distribution Box
- Function: Divides electrical power feed into subsidiary circuits
- Protection: Includes protective fuses or circuit breakers for each circuit
- Purpose: Controls DC power from solar panels
- Surge Protection: Equipped with Surge Protection Device (SPD) for added safety
- Additional Protection: Fuses and, if necessary, MCB for Single Phase circuits
- Voltage Rating: 600V DC
- Power Range: Suitable for systems ranging from 4 kW to 8 kW
- Application: Ideal for solar power systems requiring reliable circuit protection and control
Product Details
Model: DCDB 4-8kw 2 in 2 out
Brand: Daystar solutions
Suitable Up to: 20 Solar Panels
MCB: DC32A 2P V guard MCB x 2nos
SPD: Havells
No. of SPDs: 600V x 2 SPD
Rated Voltage: 1000V DC
Rated Current: 16A
No. of Fuse & Holder: 2 DC Fuse & Holder
Degree of Protection: IP 20
Enclosure Material: Thermoplastic UL94-V0
Enclosure Type: Transparent Cover, Light Gray Box
Inside Mounting: 35mm x 7.5mm Din Rail
Protection: IP67 Water Proof, Dust Proof And Anti-Corrosion
Enclosure Box & Fitting
DC Fuse & Fuse Holder
