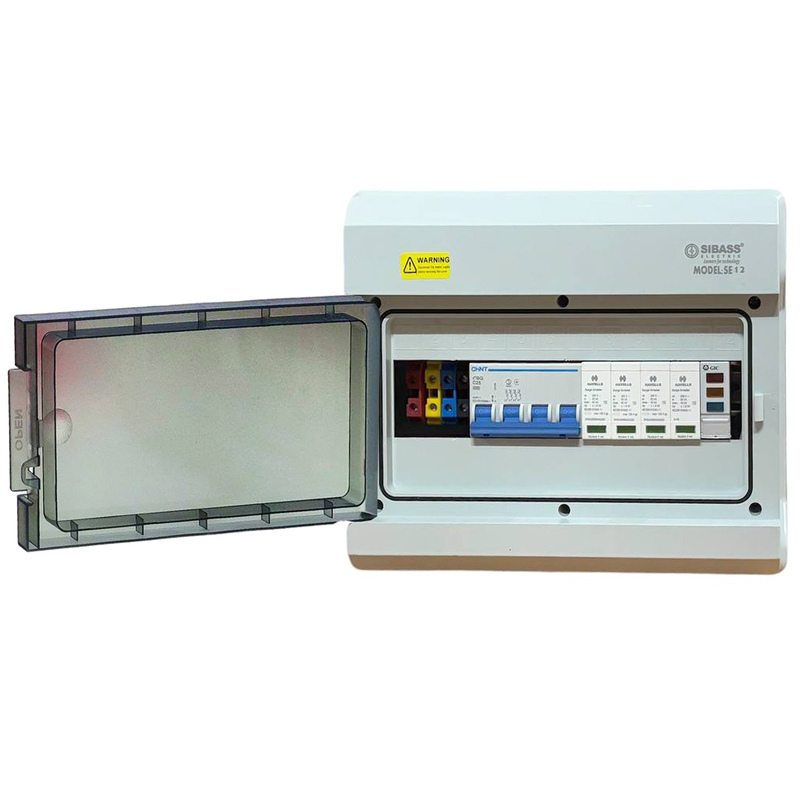

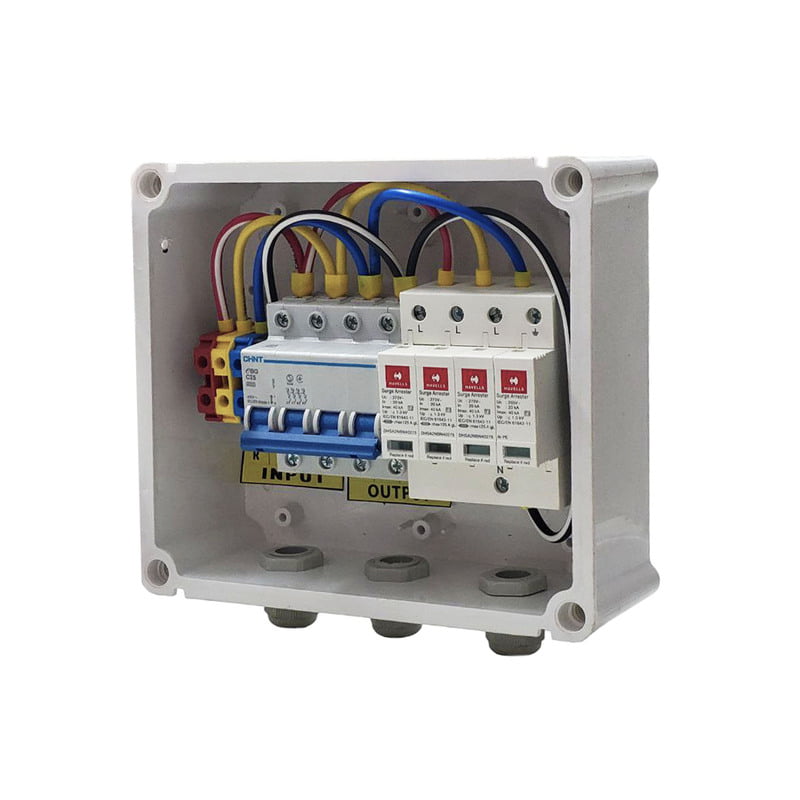

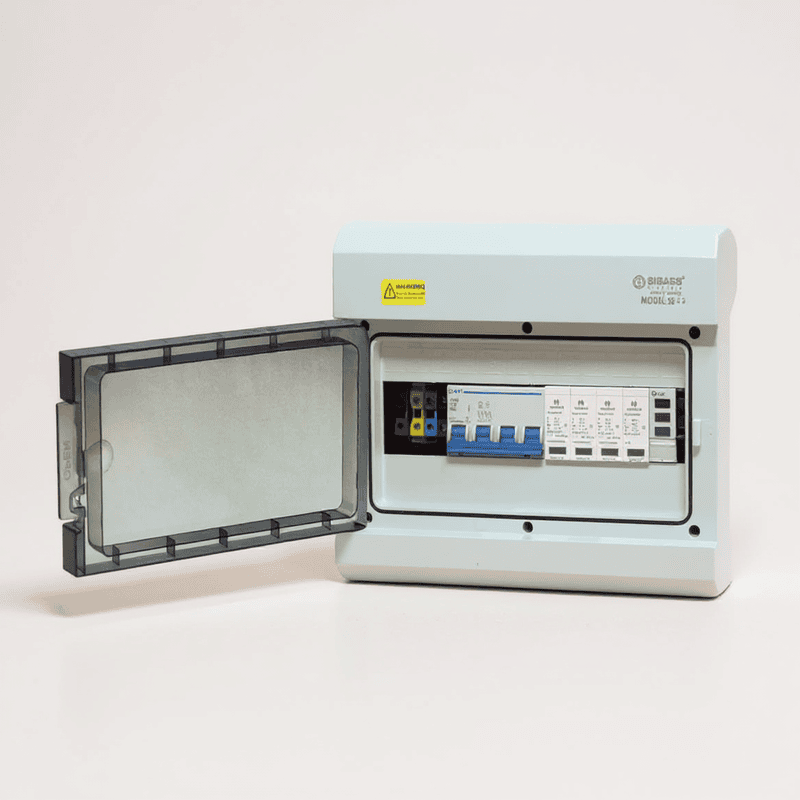

Daystar Solutions ACDB Three Phase 320V 32Amp for 5-10kw (AC Distribution Box)
Rs.3,900.00 Rs.4,500.00
ACDB are an important part of SPV system to provide extra electric protection to the system during failures.
AC distribution box provides protection in Load AC side during failures. ACDB incorporates MCB and MCCB’s etc.
It has provision for surge protection also inside to ensure maximum protection to the sophisticated electronic equipment.
Product Details
Model: 3 Ph 32A
Phase: Three Phase
Suitable Up to 5kW to 14kW
SPD : havells
Max. Operating Voltage (Uc) 320V AC
SPD Classification / Type: Type 2, Class II
Enclosure Material: Thermoplastic UL94-V0
Degree of Protection: IP 20
Execution (Pole) Four Pole (FP)
Type C Curve
Rated Frequency (f) 50 Hz
Short Circuit Breaking Capacity 10 kA
Case & Cover: Moulded, flame-retardant thermoplastic material
Protection Class: IP 20
Enclosure Type: Transparent Cover, Light Gray Box
Inside Mounting: 35mm x 7.5mm Din Rail
Protection: IP67 Water Proof, Dust Proof & Anti-Corrosion
