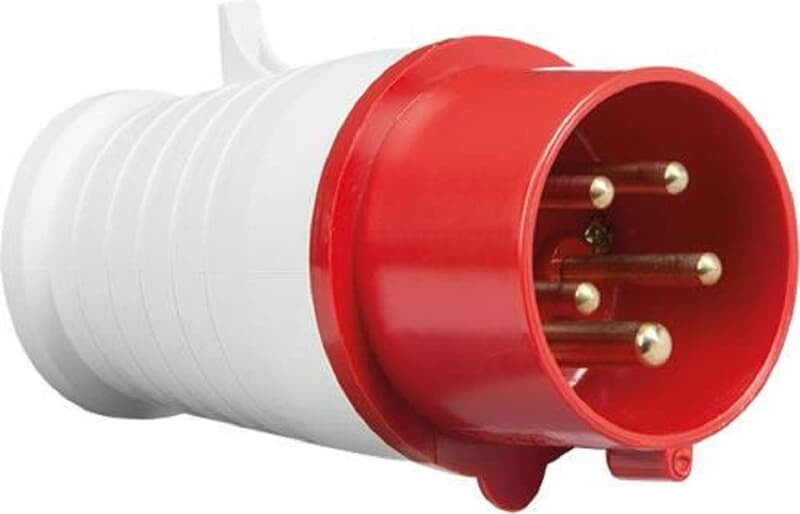

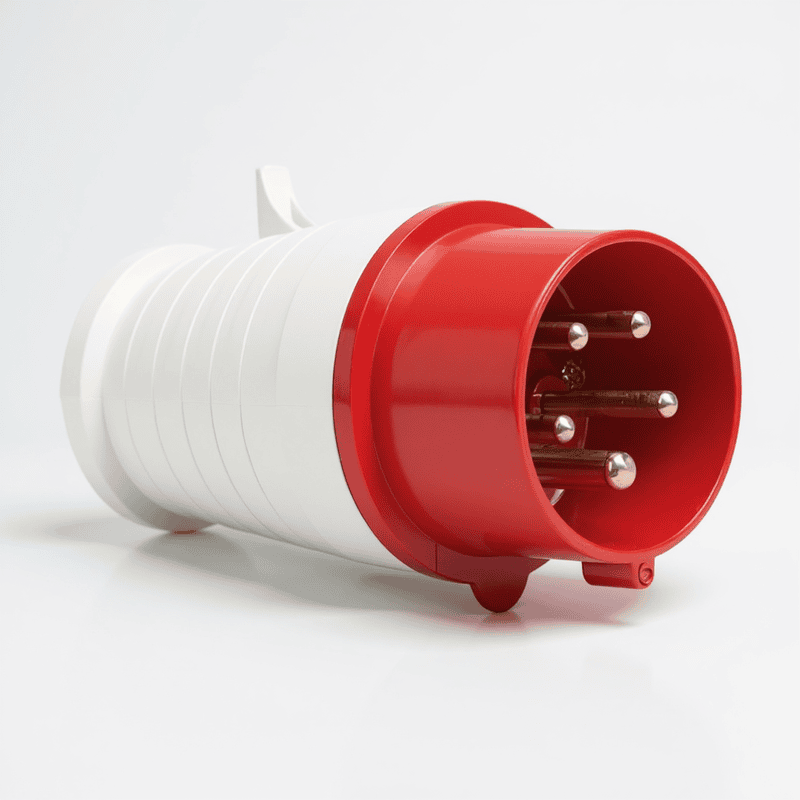

5 Pin, 32A, Industrial straight Plug IP44 Waterproof (Plug only)
Rs.195.00 Rs.530.00
Tags:
5-Pin, 32A Industrial Plug offer robust and versatile connectivity for 220-440VAC applications.Industrial Plug With Cable Glands. Featuring an IP44 waterproof rating, this connector is designed to resist splashing water, making it suitable for both indoor and outdoor use in industries, agriculture, and power plants. Its secure design prevents accidental disconnection, while the ABS shell and brass rod conductor ensure strong electrical conductivity and insulation. With a sleek, concealed appearance, it maintains a tidy and professional look.
Product Details
Technical Parameters
- Current : 32A
- Pole : 5 (5-pin / 4P+E)
- Optional voltage : 110V (50-60Hz) / 230V (50-60Hz) / 400V (50-60Hz) / 500V (50-60Hz) / 100-300Hz (>50V) / 300-500Hz (>50V)
- Coupling : Screw
- Shell material : Nylon
- Contact material : Brass with nickel plating
- Temperature rage : -25℃ ~ +85℃
- Insulation resistance : 500V~1min ＞5MΩ
- Test voltage 1min : 2500V AC
- Insert material : Fiberglass reinforced plastics
- IP rating : IP44
- Min. wire size : 1.5mm2
- Max. wire size : 6 mm2
