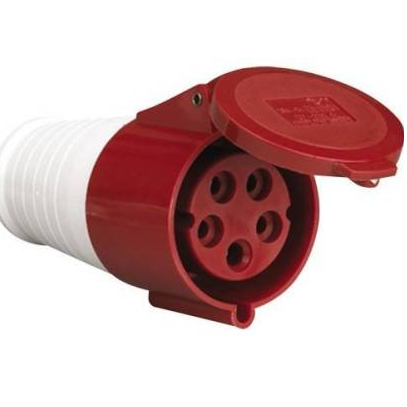

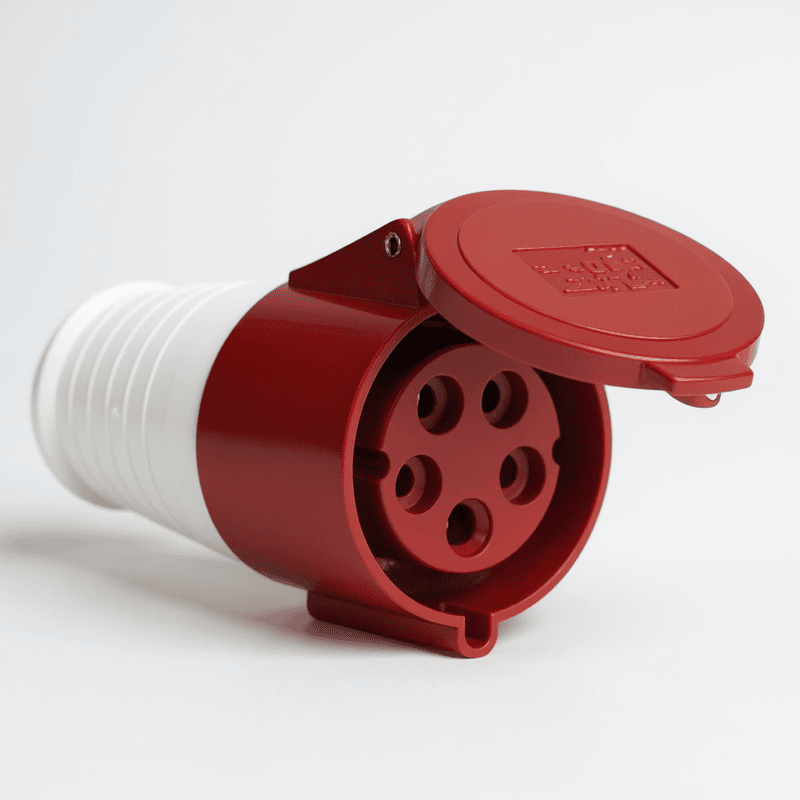

32A Industrial Socket Straight - 5 Pin
Type: 5-Pin Industrial Socket IP44 Waterproof (Straight Socket set) 32A
Voltage Range: Suitable for 440VAC applications
Protection Rating: IP44 (waterproof, resistant to splashing water)
Applications: Ideal for indoor and outdoor use in industries, agriculture, and power plants
Design Features:
Secure Coupling: Prevents accidental disconnection
Sleek Appearance: Concealed design for a tidy and professional look
Materials:
Shell Material: Durable Nylon for strength and insulation
Contact Material: Brass with nickel plating for excellent conductivity
Insert Material: Fiberglass reinforced plastics for added durability
Current Rating: 32A
Pole Configuration: 5 (5-pin / 4P+E)
Optional Voltage Ratings: 110V (50-60Hz),230V (50-60Hz),400V (50-60Hz),500V (50-60Hz),100-300Hz (>50V),300-500Hz (>50V)
Coupling Mechanism: Screw for secure attachment
Temperature Range: -25℃ to +85℃
Insulation Resistance: 500V for 1 minute, >5MΩ
Test Voltage: 2500V AC for 1 minute
Minimum Wire Size: 1.5mm²
Maximum Wire Size: 6mm²
