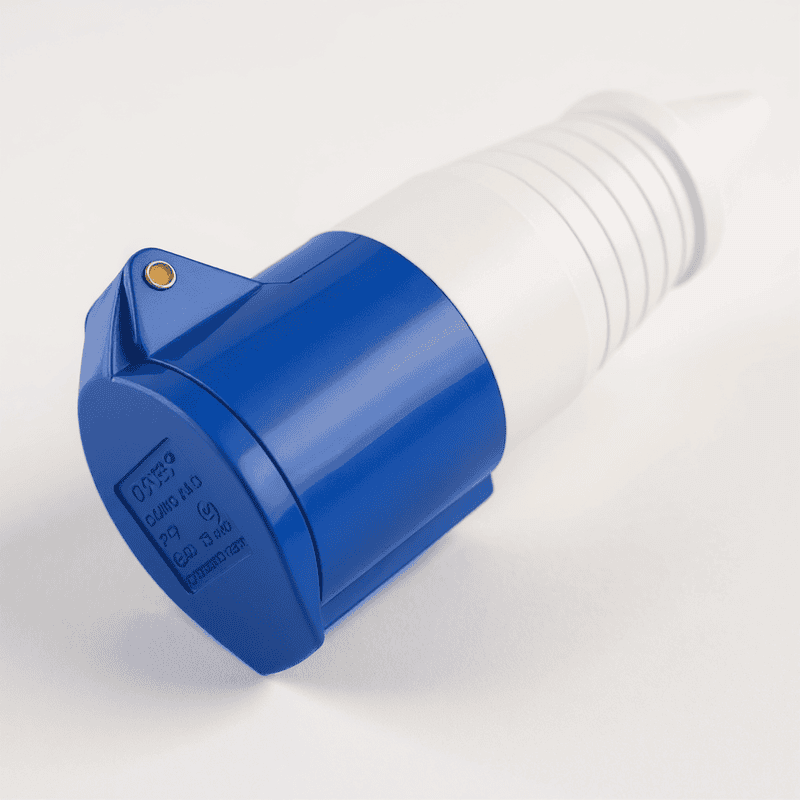

32A Industrial Socket Straight - 3 Pin

Current Rating: 32A

Pole Configuration: 3 (3-pin / 2P+E)

Optional Voltage Ratings: 110V (50-60Hz),230V (50-60Hz),400V (50-60Hz),500V (50-60Hz),100-300Hz (>50V),300-500Hz (>50V)

Coupling Mechanism: Screw

Shell Material: Durable Nylon

Contact Material: Brass with Nickel Plating

Temperature Range: -25℃ to +85℃

Insulation Resistance: 500V for 1 minute, >5MΩ

Rated Voltage: 200-250V AC, 50/60Hz

Test Voltage: 2500V AC for 1 minute

Insert Material: Fiberglas Reinforced Plastics

IP Rating: IP44

Minimum Wire Size: 1.5mm²

Maximum Wire Size: 10mm²

Cable Outer Diameter Range: 10-13mm
