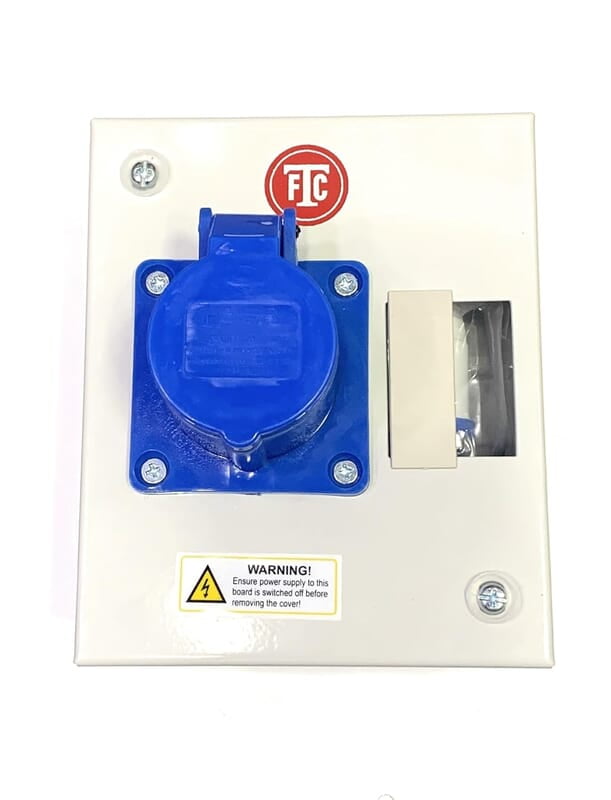

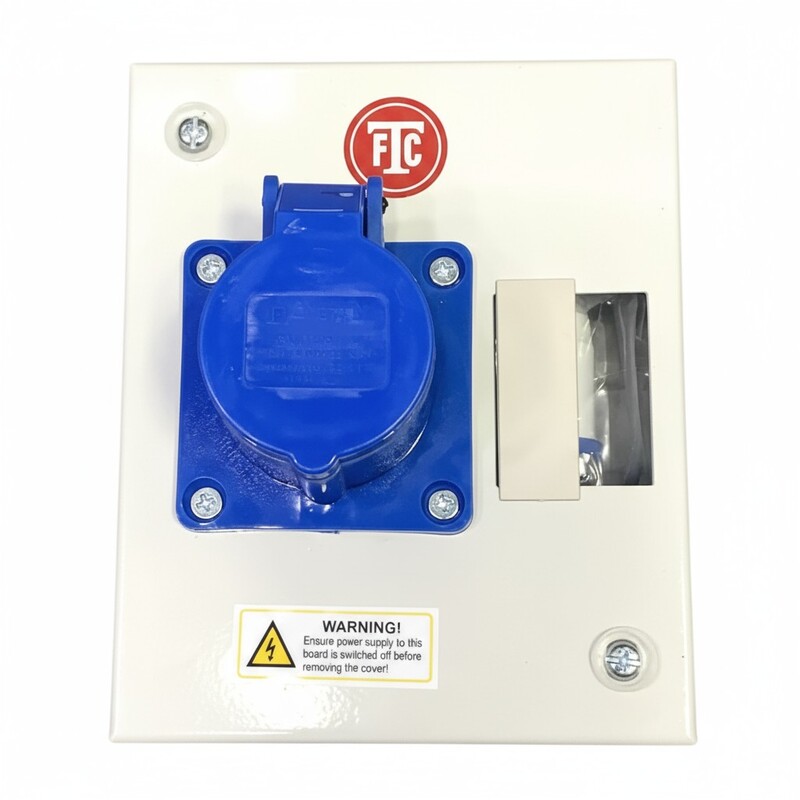

3 Pin/16A Industrial Plug & Socket steel sheet enclosures(without MCB) with plug and socket
Type: 3-Pole Industrial Plug & Socket with Steel Sheet Enclosures (without MCB)Current Rating: 16APole Configuration: 3 (3-pin / 2P+E)IP Rating: IP44 (weatherproof, resistant to splashing water)Applications: Suitable for indoor and outdoor use in industries, agriculture, and power plantsDesign Features:- Secure Coupling: Prevents accidental disconnection
- Sleek Appearance: Concealed design for a tidy and professional look
Materials:- Shell Material: Durable Steel Sheet for added strength
- Contact Material: Brass with nickel plating for superior conductivity
- Insert Material: Fiberglass reinforced plastics for durability
Product Details
Current : 32A
Pole Configuration: 3 (3-pin / 2P+E)
Coupling : Screw
Optional Voltage Ratings: 110V (50-60Hz),230V (50-60Hz),400V (50-60Hz),500V (50-60Hz),100-300Hz (>50V),300-500Hz (>50V)
Temperature Range: -25℃ to +85℃
Insulation Resistance: 500V for 1 minute, >5MΩ
Test Voltage: 2500V AC for 1 minute
Minimum Wire Size: 1.5mm²
Maximum Wire Size: 6mm²
MCB Space: Space for 1 pole MCB
