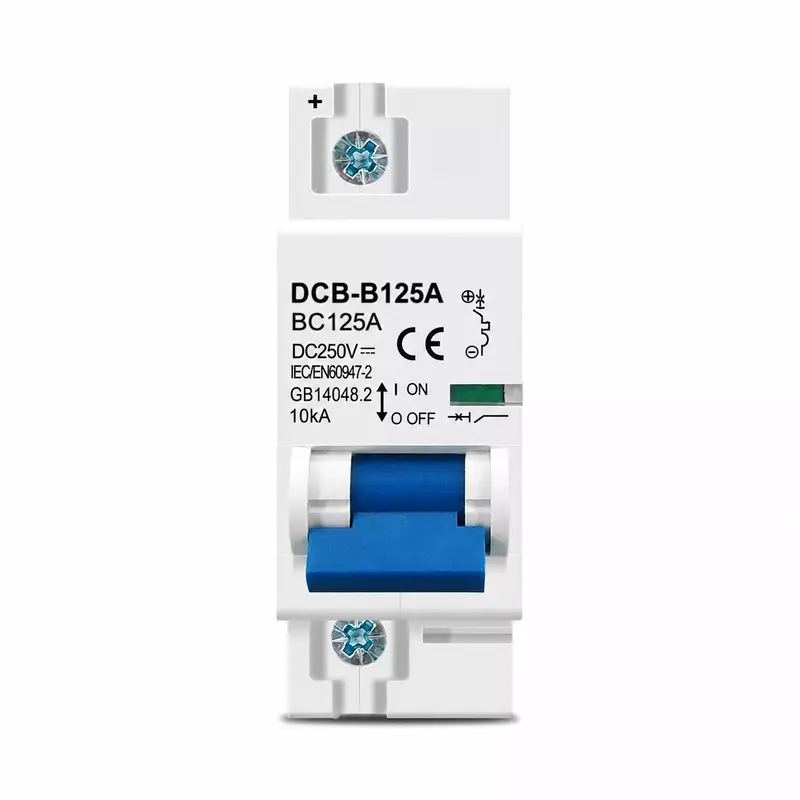

125A 1-Pole DC MCB – 250VB Curve MCB for PV/Solar Systems & Battery | 10kA Breaking Capacity
125A 1-Pole DC MCB – 250VB Curve MCB for PV/Solar Systems & Battery | 10kA Breaking Capacity
125A 1-Pole DC MCB – 250VB Curve MCB for PV/Solar Systems & Battery | 10kA Breaking Capacity

125A 1-Pole DC MCB – 250VB Curve MCB for PV/Solar Systems & Battery | 10kA Breaking Capacity

  • High-Current DC Protection: Rated at 125A and 250V DC, designed for high-current solar PV, battery, and DC power applications.
  • Fast Circuit Protection: Provides 10kA breaking capacity with a fast trip time of ≤0.03 seconds to help protect circuits against overloads and short circuits.
  • B Curve Protection: Designed for dependable DC circuit protection in photovoltaic, battery storage, and other high-current DC systems.
  • DIN Rail Mounting: Compact 1P design with support for 35mm DIN rail mounting, suitable for electrical panels and distribution enclosures.
  • Long Service Life: Designed for approximately 10,000 mechanical operations and 2,000 electrical operations for reliable long-term use.
  • Wide Operating Temperature: Suitable for operation from -25°C to 50°C, supporting use in residential, commercial, solar, and energy-storage installations.
  • Safety-Focused Construction: Made with flame-retardant material for improved heat resistance and safer operation.
  • Note: A light noise when shaken may be normal due to the internal arc-extinguishing components and does not affect normal performance or safety.
    • Rs.679.00 Rs.2,000.00
    Available Offer
    Product Details
  • Application: Solar PV, Battery & DC Power Systems
  • Rated Current: 125A
  • Rated Voltage: 250V DC
  • Number of Poles: 1P
  • Trip Curve: B Curve
  • Breaking Capacity: 10kA
  • Trip Time: ≤0.03s
  • Operating Temperature: -25°C to 50°C
  • Tightening Torque: 2.5 N·m
  • Product Dimensions: Approx. 8 × 2.6 × 6 cm
  • Product Weight: Approx. 140g
